Dimensions

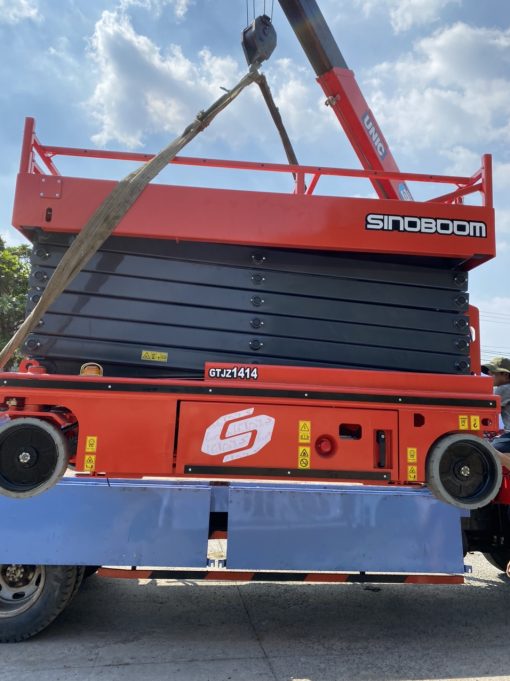

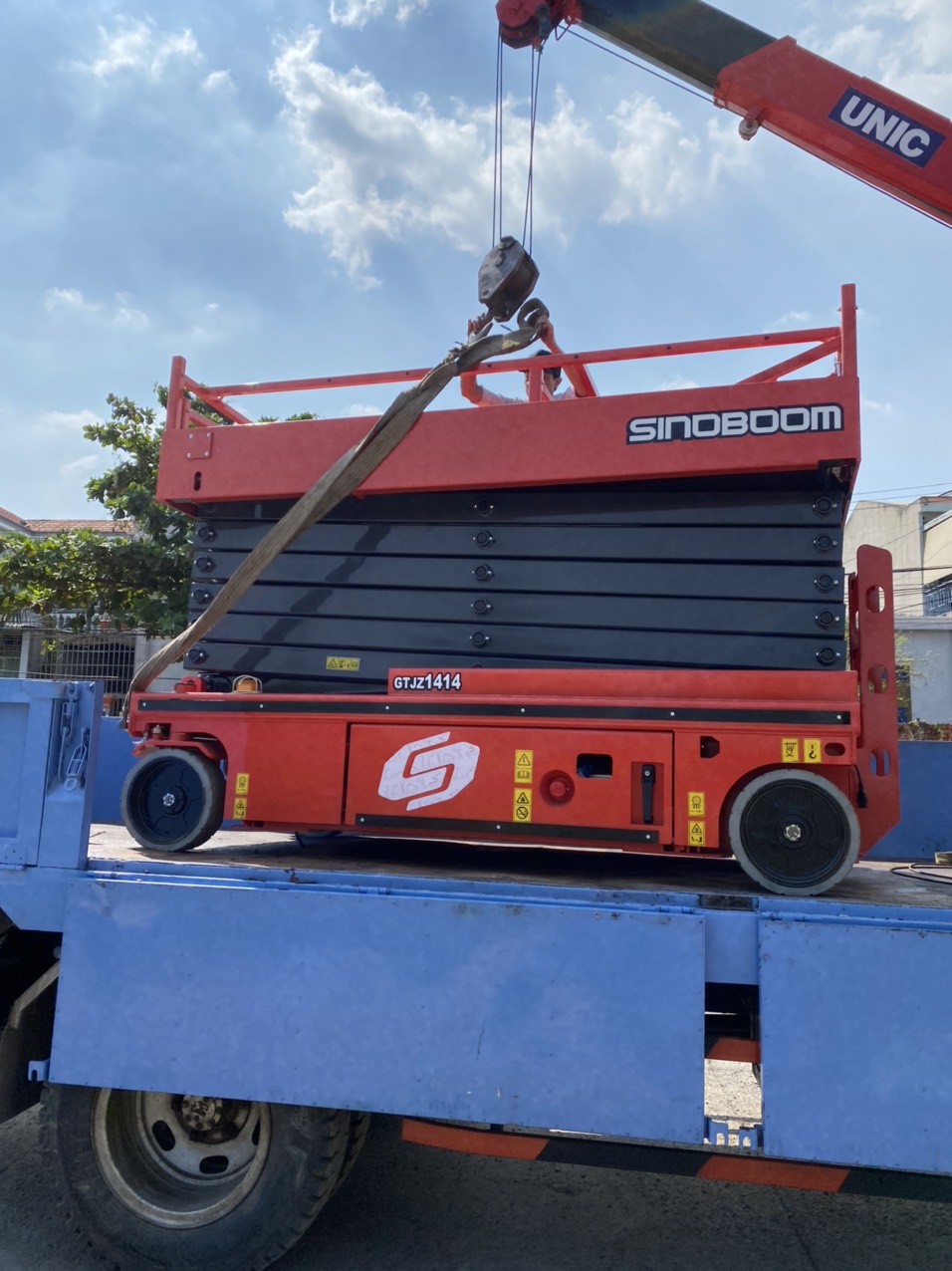

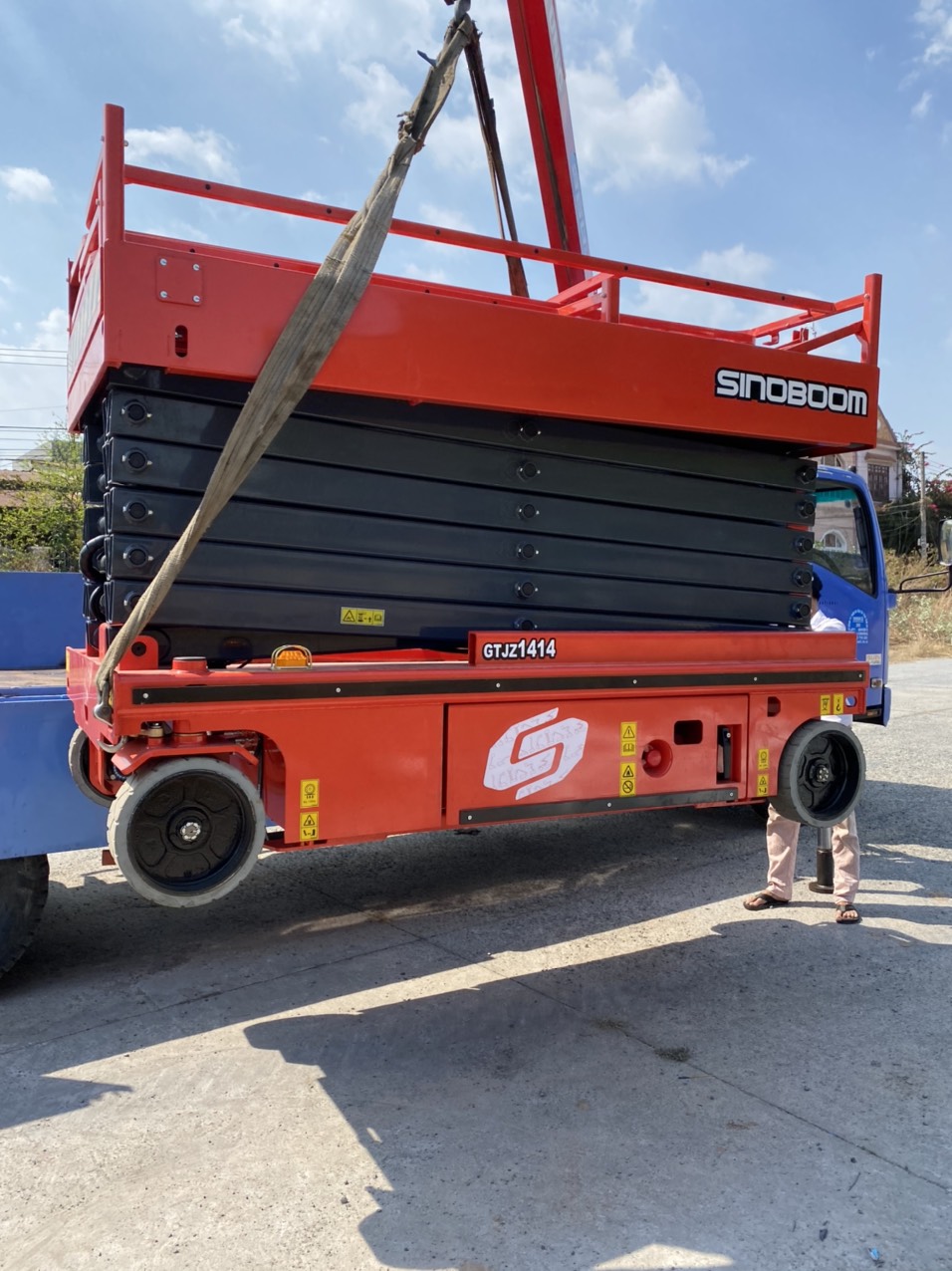

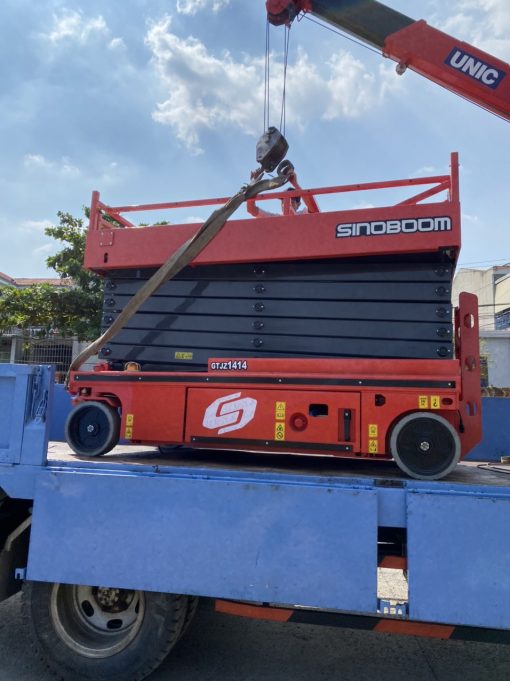

| Model | GTJZ1414 |
|
||
| Chiều cao sàn (Platform height max) | 12 m | |||
| Chiều cao làm việc (Working height max) | 14 m | |||
| Chiều dài xe (Length – stowed) | 2.77 m |
|
||
| Chiều rộng xe (Width – stowed) | 1.39 m | |||
| Chiều cao xe (Height – stowed) | 1.96 m |
|
||
| Khoảng sáng gầm (Ground clearance) | 0.1m |
|
||
| Kích thước sàn (Platform size (L*W*H) | 2.64 m*1.3 m*1.1 m |
|
||
| Khoảng cách trục (Wheelbase) | 2.22 m |
|
||
Productivity
| Tải trọng (Lift capacity) | 227 kg |
|
|
| Drive speed – stowed | 0~3.2 km/h |
|
|
| Drive speed – raised | 0~0.8 km/h | ||
| Gradeability | 25% | ||
| Turning radius – inside | 0 m |
|
|
| Turning radius – outside | 2.64 m |
|
|
| Max. allowable slope | 3° |
|
|
| Drive & steer model | 2WD*Front-wheel |
|
|
| Tire size / type | 380*125mm/solid |
|
|
Power
| Power source | Battery |
|
| Driving type | Eletric |
|
| Battery specification | 300Ah, 6V*4 |
|
Weight
| Overall weight | 3460 kg |
|
| Standards Compliance | CE/ ISO/ ADR/ ARAMCO |
